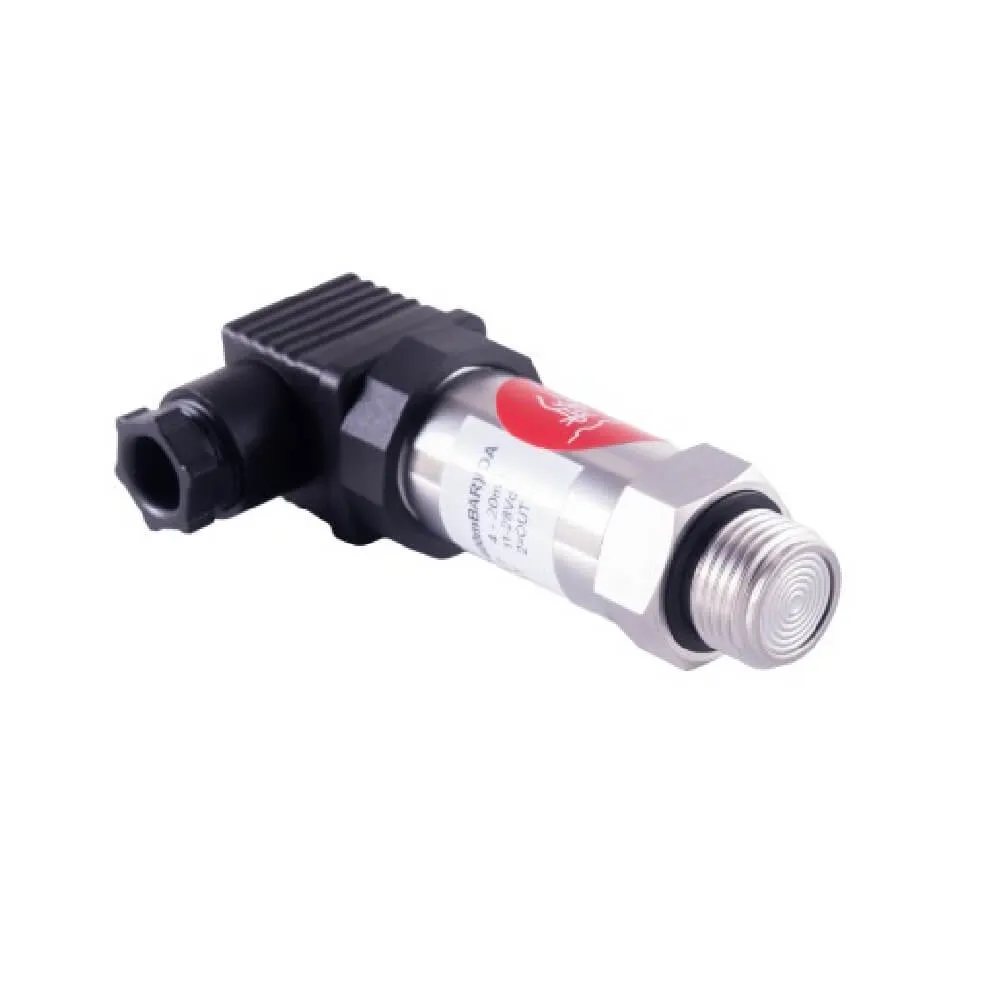

Flush Type Pressure Transmitter
Introduction
A flush-type pressure transmitter is specially designed for measuring pressure in challenging applications, such as those involving highly viscous or solid-laden fluids. Unlike traditional pressure transmitters, flush-type pressure transmitters feature a diaphragm that sits flush with the device's front, preventing debris buildup and contamination.
Features of Flush Type Pressure Transmitter
• Precise & accurate

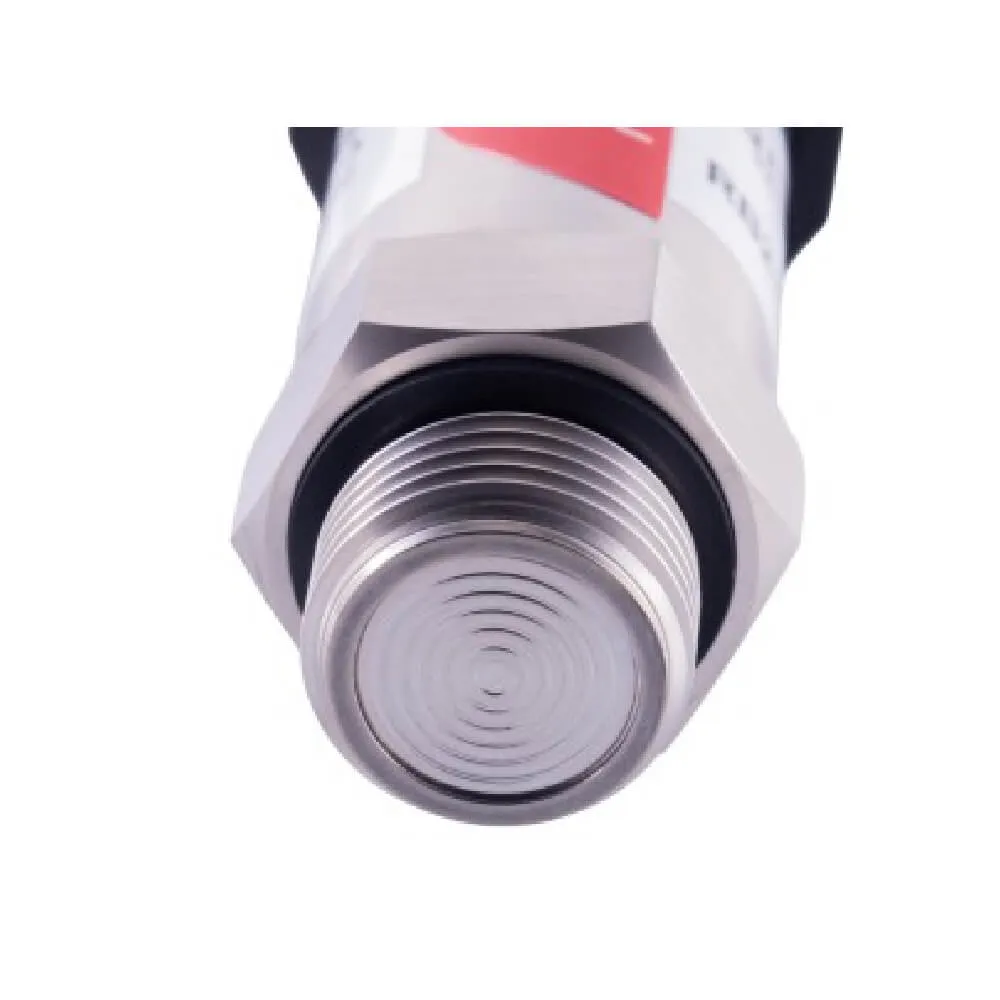

• Flush Diaphragm process connection
• Wide range compatibility
• Fully welded design
Specifications
| Performance Characteristics | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure type | Compensated temperature range | Measuring Range | Long term stability | Accuracy | Response time | Min. measuring span | Max. measuring span | Over Pressure | Temperature coefficient | Process temperature | Process pressure | Connection variants |
| Relative(gauged) & Absolute | -10 ... 55 C | 0... 100 mbar ~ 0... 400 bar | <0.3 % FSR/year | 0.5% FS | <5ms | 100 mbar | 400 bar | 1.5 times FS | <0.15 % FSR/10K, measuring span
<0.25 % FSR/10K, zero point |
-30 ... 80 C | Refer measuring range for Process pressure | G 1/2 Flush Diaphragm |
| Material of Construction | Electrical Connection | ||||
|---|---|---|---|---|---|
| Diaphragm | Pressure Port | Housing | Sealing | Connector | Cable |
| SS316L | SS304 | SS304 | NBR | DIN 43650
M12 connector |
2m cable exit |
| Output Signal | Power Supply | |
|---|---|---|
| Current output | Voltage output | Voltage supply range |
| 4 ... 20 mA, 2-wire | 0~5VDC
0~10VDC 0.5~4.5VDC |
11 ... 30V DC, with 4 ... 20 mA output signal
15 ... 30V DC, with 0 ... 1 0V output signal 5V DC ratiometric ... with 0.5 ... 4.5V output signal |
| Measuring Range
(Bar) |
|
|---|---|
| -1 ... 0 bar | 0 ... 1 bar |
| -1 ... 1.5 bar | 0 ... 2.5 bar |
| -1 ... 3 bar | 0 ... 4 bar |
| -1 ... 5 bar | 0 ... 6 bar |
| -1 ... 9 bar | 0 ... 10 bar |
| -1 ... 15 bar | 0 ... 16 bar |
| -1 ... 24 bar | 0 ... 25 bar |
| -1 ... 39 bar | 0 ... 40 bar |
| 0 ... 100 mbar | 0 ... 60 bar |
| 0 ... 200 mbar | 0 ... 100 bar |
| 0 ... 400 mbar | 0 ... 160 bar |
| 0 ... 600 mbar | 0 ... 200 bar |
| 0 ... 250 bar | |
| 0 ... 400 bar | |
Dimensional Drawings (mm)
Electrical Connection
| Pin | 2-wire | 3-wire |
|---|---|---|
| 1 | +V | +V |
| 2 | +OUT | GND |
| 3 | Null | +OUT |
| Wire Color | 2-wire | 3-wire |
|---|---|---|
| Red | +V | +V |
| Black | +OUT | GND |
| White | Null | +OUT |
Ordering Code
| RB21F | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pressure Transmitter | ||||||||||||
| Range | 0-100 mbar~0...400 bar | |||||||||||
| [0~X] Bar | X:the actual measured pressure | |||||||||||
| Code | Output signal | |||||||||||
| I | 4~20mADC | |||||||||||
| V1 | 0~5VDC | |||||||||||
| V2 | 0~10VDC | |||||||||||
| V3 | 0.5~4.5VDC | |||||||||||
| Code | Electircal Connection | |||||||||||
| 0 | DIN43650 connector | |||||||||||
| 1 | Cable exit | |||||||||||
| 2 | M12 connector | |||||||||||
| Code | Process Connection | |||||||||||
| A | G1/2 Flush Diaphragm | |||||||||||
| Code | Pressure Type | |||||||||||
| 1 | Gauge Pressure | |||||||||||
| 2 | Absolute Pressure | |||||||||||
| RB21F | [0~1bar] | I | 0A1 | The whole spec | ||||||||
